Guix on Android!
by Julien Lepiller — Sun 29 April 2018
Last year I thought to myself: since my phone is just a computer running an operating system called Android (or Replicant!) , and that Android is based on a Linux kernel, it's just another foreign distribution I could install GNU Guix on, right? It turned out it was absolutely the case. Today I was reminded on IRC of my attempt last year at installing GNU Guix on my phone. Hence this blog post. I'll try to give you all the knowledge and commands required to install it on your own Android device.
Commands I give here might not work on your device. Any misuse of these commands can brick your phone, so be very careful.
First of all, you will need an Android or Replicant device. Just like
any installation of GNU Guix, you will need root access on that device.
Unfortunately, in the Android world this is not very often the case by default.
Then, you need a cable to connect your computer to your phone. Once the hardware
is in place, you will need
adb (the Android Debugging Bridge):
guix package -i adb
Exploring the device
Every Android device has its own partioning layout, but basically it works like this:
- A boot partition for booting the device
- A recovery partition for booting the device in recovery mode
- A data partition for user data, including applications, the user home, etc
- A system partition with the base system and applications. This is the place where phone companies put their own apps so you can't remove them
- A vendor partition for drivers
- Some other partitions
During the boot process, the bootloader looks for the boot partition. It
doesn't contain a filesystem, but only a gzipped cpio archive (the initramfs)
and the kernel. The bootloader loads them in memory and the kernel starts using
the initramfs. Then, the init system from this initramfs loads partitions in
their respective directories: the system partition in
the vendor partition in
/vendor and the data partition in
/data. Other partitions may be loaded.
And that's it. Android's root filesystem is actually the initramfs so any modification to its content will be lost after a reboot. Thankfully(?), Android devices are typically not rebooted often.
Another issue is the Android C library (libc), called Bionic: it has less functionality and works completely differently from the GNU libc. Since Guix is built with the Glibc, we will need to do something to make it work on our device.
Installing the necessary files
We will follow the binary installation guide. My hardware is aarch64, so I download the corresponding binary release.
Now it's time to start using adb. Connect your device and obtain root priviledges for adb. You may have to authorize root access to the computer from your phone:
Now, we will transfer some necessary files:
adb push guix-binary-* /data # Glibc needs these two files for networking. adb push /etc/protocols /system/etc/ adb push /etc/services /system/etc/ # … and this one to perform DNS queries. You probably need # to change nameservers if you use mobile data. adb push /etc/resolv.conf /system/etc/
Note that some devices may not have
In that case,
/etc may be available. If none is available, create
the directory by using
adb shell to get a shell on your device,
then push the files to that new directory.
Installing Guix itself
Now all the necessary files are present on the device, so we can connect to a shell on the device:
From that shell, we will install Guix. The root filesystem is mounted read-only as it doesn't make sense to modify it. Remember: it's a RAM filesystem. Remount-it read-write and create necessary directories:
mount -o remount,rw / mkdir /gnu /var mount -o remount,ro /
Now, we can't just copy the content of the binary archive to these
folders because the initramfs has a limited amount of space. Guix complains when
/gnu/storeis a symlink. One solution consists in
installing the content of the binary tarball on an existing partition (because
you can't modify the partition layout easily) that has enough free space,
typically the data partition. Then this partition is mounted on
Before that, you will need to find out what the data partition is in
your system. Simply run
mount | grep /data to see what partition
We mount the partition, extract the tarball and move the contents to their final location:
mount /dev/block/bootdevice/by-name/userdata /gnu mount /dev/block/bootdevice/by-name/userdata /var cd /data tar xf guix-binary-... mv gnu/store . mv var/guix . rmdir gnu rmdir var
Finally, we need to create users and groups for Guix to work properly. Since Bionic doesn't use
/etc/group to store the users, we need to
create them from scratch. Note the addition of the root user and group, as well
as the nobody user.
# create guix users and root for glibc cat > /etc/passwd << EOF root:x:0:0:root:/data:/sbin/sh nobody:x:99:99:nobody:/:/usr/bin/nologin guixbuilder01:x:994:994:Guix build user 01:/var/empty:/usr/bin/nologin guixbuilder02:x:993:994:Guix build user 02:/var/empty:/usr/bin/nologin guixbuilder03:x:992:994:Guix build user 03:/var/empty:/usr/bin/nologin guixbuilder04:x:991:994:Guix build user 04:/var/empty:/usr/bin/nologin guixbuilder05:x:990:994:Guix build user 05:/var/empty:/usr/bin/nologin guixbuilder06:x:989:994:Guix build user 06:/var/empty:/usr/bin/nologin guixbuilder07:x:988:994:Guix build user 07:/var/empty:/usr/bin/nologin guixbuilder08:x:987:994:Guix build user 08:/var/empty:/usr/bin/nologin guixbuilder09:x:986:994:Guix build user 09:/var/empty:/usr/bin/nologin guixbuilder10:x:985:994:Guix build user 10:/var/empty:/usr/bin/nologin EOF cat > /etc/group << EOF root:x:0:root guixbuild:x:994:guixbuilder01,guixbuilder02,guixbuilder03,guixbuilder04,guixbuilder05,guixbuilder06,guixbuilder07,guixbuilder08,guixbuilder09,guixbuilder10 EOF
First, we install the root profile somewhere:
export HOME=/data ln -sf /var/guix/profiles/per-user/root/guix-profile $HOME/.guix-profile
Now we can finally run the Guix daemon. Chrooting is impossible on my device so I had to disable it:
export PATH="$HOME/.guix-profile/bin:$HOME/.guix-profile/sbin:$PATH" guix-daemon --build-users-group=guixbuild --disable-chroot &
To finish with, it's a good idea to allow substitutes from hydra:
mkdir /etc/guix guix archive --authorize < $HOME/.guix-profile/share/guix/hydra.gnu.org.pub

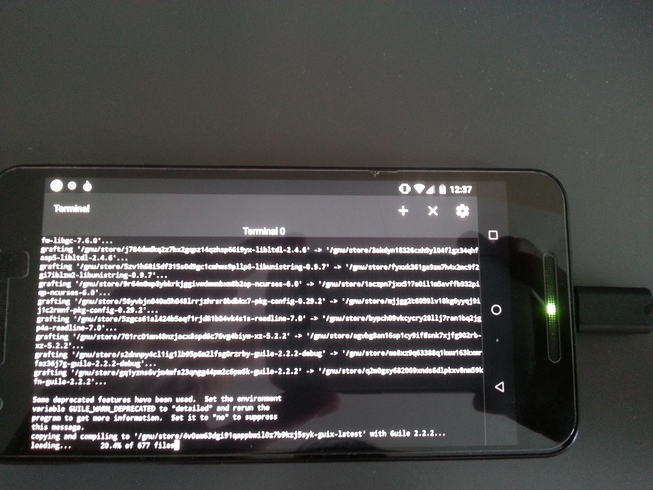

So, now we can enjoy the Guix package manager on Android! One of the
drawbacks is that after a reboot we will have to redo half of the steps:
/gnu, mount the partitions to them.
Everytime you launch a shell, you will have to export the
be able to run guix. You will have to run guix-daemon manually. To solve all of
these problems at once, you should modify the boot image. That's tricky and I
already put some effort to it, but the phone always ends up in a boot loop after
I flash a modified boot image. The nice folks at
that I soldered some cable to access a serial console where debug messages may
be dropped. Let's see how many fingers I burn before I can boot a custom boot
